MD-150 Series

THE MD-150. Ultra-low inertia for precise steady state tuning. Upgradable to mechanically linked AWD.

With ultra-low inertia and a powerful 625-hp PAU, the MD-150 is a perfect combination of power and finesse – capable of handling most sport compact applications with ease. The 1200-hp measurement capacity means you’ll have no problem pulling horsepower sweeps with this low-profile dyno.

The MD-150 is best suited for real-time, steady state tuning of stand-alone engine management systems such as Autronic, MoTeC, Accel DFI, F.A.S.T., AEM, Haltech and the like. From a dynamometer stand-point, the main focus of real-time programming is dynamometer sensitivity, resolution, and set-point stability. The MD-150’s ultra-low inertia design and high speed controller maximize the user’s experience by minimizing controller “wondering” and enhancing system control – simply dial in a speed and let the MD-150 take over. Add timing and watch torque increase right on the dynamometer screen in real-time until you have optimized engine timing and fuel mixture.

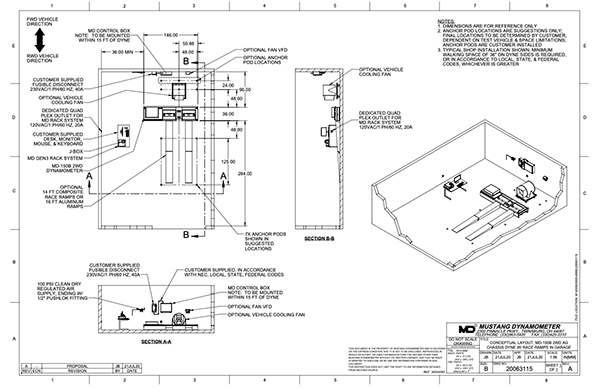

The MD-150 can be installed above or below ground, it is your choice – however, one of the MD-150’s main assets is its smaller size – which, of course, makes it easy to install right on the shop floor. Mustang Dynamometer offers a set of aluminum ramps which can be removed when the dynamometer system is not in use. Mustang Dynamometer also offers an optional caster kit which allows the MD-150 to be moved about the shop. This is the ideal dyno for a smaller shop with limited space that does not want to compromise.
