MD-500 Series Overview
MD-500 – PERFECT IF YOU PLAN TO UPGRADE TO AN AWD DYNE
For those shops that wish to ease into the dynamometer performance tuning market one step at a time, Mustang offers a perfect solution. The MD-500 dyno. An excellent 2WD performance dyno in and of itself, the MD-500 is simply one-half of the MD-AWD-500 system. The MD-500’s multiple upgrade paths allow it to accept Mustang’s AWD upgrade in the future and also enable it to accept a second eddy current PAU for increased loading capability should you ever feel the need to expand your testing capabilities. With 1,500-hp measurement capacity, the MD-500 can handle high performance front wheel and rear wheel drive vehicles. If your shop caters to the motorcycle market too, the MD-500 series can be purchased with the optional motorcycle adaptor kit. The 500-SE offers a compact frame with a narrow 80-inch outer track and is great for shops with limited space that mainly focus on passenger cars and smaller pick up trucks.
MD-500 Series Specifications
Max Horsepower: 1,500 hp peak measurement capacity
Max Absorption: 900/1,800 (SE/DE model)
Loading Device: Air-cooled eddy current power absorber
Torque Measurement Device: Strain Gauge Type Dynamic Load Cell. Provides closed loop control signal for dynamic vehicle loading
Inertia: 1,190 lbs. nominal inertia
Max Speed: 190 mph
Controls:
Closed-Loop Digital Controller with web-based Holeshot Software.
Includes Patented Virtual Road Simulation Technology.
Rolls/Wheelbase:
Precision machined and dynamically balanced, knurled rolls
Belted for bi-directional capability
12.625” diameter balanced rolls
31” face length
18” inner track width
80” outer track width (98” optional)
Roll Lock: Between roll lift with integrated roll lock
Roll Decelerator: Allows vehicle deceleration without use of vehicle brakes. Eddy Current PAU used to decelerate rollers.
Air Requirements: 80 PSI, dry, regulated, oil free
Power Requirements:
115 VAC, single phase, 60 Hz, 15 Amps (computer)
230 VAC, single phase, 60 Hz, 40 Amps (dynamometer)
230 VAC, three phase, 60 Hz, 40 Amps (DE model)
Axle Weight: 6,000 lbs. maximum 12,000 lbs. maximum available
Shipping Weight: 5,000 lbs. (dynamometer weight only)
Upgradeable to AWD: Yes
MD-500 Series Downloads

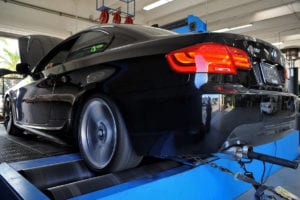

MD-500 Series Photo Gallery
