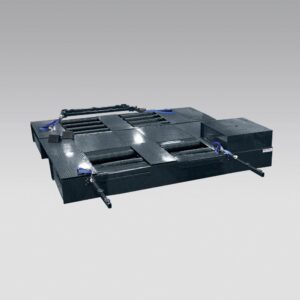

MD-AWD-500 Legacy (XL)

MD-AWD-500 Legacy (XL) dyno is our legacy dyne from Mustang Dynamometer. Mechanically linked, all wheel drive performance dyno with synchronization, or linkage, insures that the front and rear rollers are always spinning at precisely the same road speed, incorporates an internal drive system that synchronizes the front and back rollers to simulate a flat, dry road condition. This process eliminates the possibility of activating a vehicle’s traction control system and also insures that a vehicle’s torque management system is operating under the assumption that the vehicle is not skidding, turning or slipping.

The key to designing an AWD dynamometer properly is to understand the methods currently being used by manufacturers in the field of AWD drivetrain technology. A dynamometer that can accommodate various types of AWD vehicle transmissions and wheelbases without excessive complication and, more importantly, without risking damage to a client’s AWD system is paramount.

Full time AWD vehicles are designed to provide maximum performance regardless of road conditions. In cases where traction is less than ideal, a vehicle may be designed to improve stability and traction at the expense of power. This means adding torque to a spinning wheel or retarding of timing. In order to properly test an AWD vehicle for peak performance, an AWD chassis dynamometer must be able to simulate ideal road-load conditions to the vehicle. This approach allows the vehicle to be evaluated under “optimum” operational conditions; whereby torque is distributed to the vehicle’s tires in the same manner that would normally occur when a vehicle has equal traction at all four drive wheels, and is therefore operating at peak efficiency.

Mustang’s AWD-500 can be operated in AWD Mode while testing two-wheel drive vehicles. This process allows the non-driven axle to be spun by the dynamometer rollers at the same speed as the driven axle, eliminating the speed differential that occurs on two-wheel drive dynamometers – problem solved.
