MD-SXS-UTV side-by-side UTV dyno Overview

MD-SXS/UTV – The ultimate Side by side, UTV and Power Sports performance dyno

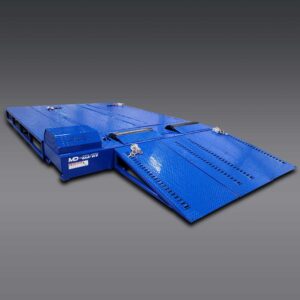

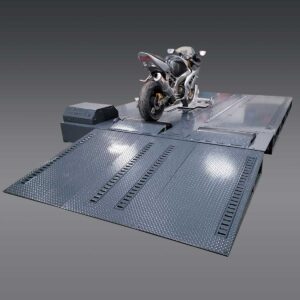

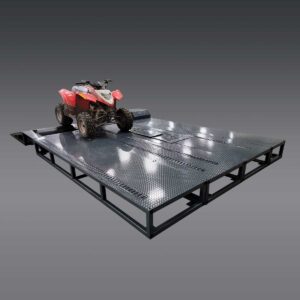

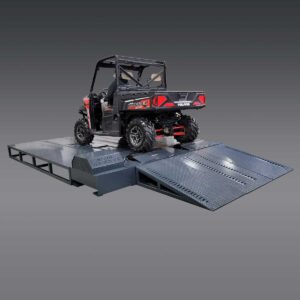

Mustang’s MD-SXS/UTV Dyno is a specially designed, high-speed, motorcycle/UTV/Side-by-side combination dyno. The low profile design and eddy current loading features are perfect for precision tuning and diagnostic applications. The base mechanical inertia of the MD-SXS/UTV is perfectly matched for testing lightweight cycles and quads, while the powerful eddy current power absorption unit provides enough muscle to apply a serious load for steady state testing applications. Quickly and easily diagnose performance problems, break in engines, perform EFI mapping and much more.

Mustang has delivered thousands of performance dynamometer systems over the past 35 years and has perfected the art and science of dynamic vehicle loading and dynamometer control. While other dyno manufactures are still trying to catch up with our technology, Mustang continues to lead the industry and is recognized around the world as the industry’s best with regards to dynamic dynamometer controls.

Options:
• Economy motorcycle clamp
• Auto motorcycle clamp
• Electronic motorcycle clamp wheelbase adjustment
• Cooling fans
• Drag race tree
• Pneumatic on/off center coupling

MD-SXS/UTV Side-by-Side/UTV Series Specifications

Max Horsepower: 850 hp (559 kW) peak measurement capacity

Max Absorption: 250 hp (186 kW) peak absorption

Loading Device: Air-cooled eddy current power absorber

Motor: Available as an option for transient testing

Inertia: 394 lbs. (179 kg) MC mode, 671 lbs. (304 kg) UTV/SxS/ATV mode

Max Speed: 200 mph (322 km/hr)

Controls: Closed Loop Digital Controller with web based Hole Shot Software. Includes Patented Virtual Road Simulation Technology.

Rolls:

Precision machined & dynamically balanced
Notched surface finish
12.625” (321 mm) diameter balanced rolls
19” (483 mm) inner track
80” (2,032 mm) outer track

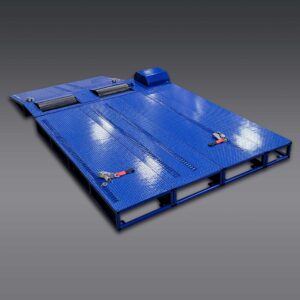

Ramp/Platform: Includes steel ramp and platform with front wheel restraint kit for safe above-floor installation. The front wheel chock is adjusted via a hand crank or optional electric motor. The MD-SXS/UTV can be equipped with the optional dual cooling fan kit.

Roll Decelerator: Allows vehicle deceleration without use of vehicle brakes. Eddy Current PAU used to decelerate rollers.

Power Requirements:

115 VAC, single phase, 60 Hz, 20 Amps (instrumentation)
230 VAC, single phase, 60 Hz, 30 Amps (dynamometer)

Shipping Weight: 3,000 lbs. (1,359 kg) dynamometer weight only
