MD-500
MD-500 Overview
THE MD-500 PORTABLE. FOR PRECISE STEADY STATE TUNING. UPGRADABLE TO MECHANICALLY LINKED AWD & EASY TO MOVE IN THE SHOP

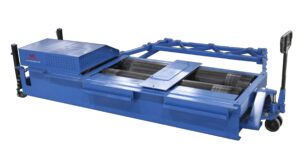

The 500 series 2WD dynamometer is a high horsepower dyno that lets you tune street cars without a large dedicated space. The 500 portable includes a pallet jack modification on one end of the frame and two bottle jacks on the other allow you to move this dyno in your shop. The portability kit lets you free up space as needed.
The portable 500 is ideal for smaller shops, schools and outdoor events. There is no need to secure the unit to the ground – simply lower the unit onto the ground, hook up the aluminum ramps and start testing.
For more information on the Portable 500 2WD series dynamometer please contact us today.
MD-500 Specifications
Portable: Yes, via pallet-jack attachment
Max Horsepower: 1,500 hp peak measurement capacity
Max Absorption: 900/1,800 (SE/DE model)
Loading Device: Air-cooled eddy current power absorber
Torque Measurement Device: Strain Gauge Type Dynamic Load Cell. Provides closed loop control signal for dynamic vehicle loading
Inertia: 1,190 lbs. nominal inertia
Max Speed: 190 mph
Controls:
Closed-Loop Digital Controller with web-based Holeshot Software.
Includes Patented Virtual Road Simulation Technology.
Rolls/Wheelbase:
Precision machined and dynamically balanced, knurled rolls
Belted for bi-directional capability12.625” diameter balanced rolls
31” face length
18” inner track width
80” outer track width (98” optional)
Roll Lock: Between roll lift with integrated roll lock
Roll Decelerator: Allows vehicle deceleration without use of vehicle brakes. Eddy Current PAU used to decelerate rollers.
Air Requirements: 80 PSI, dry, regulated, oil free
Power Requirements:
115 VAC, single phase, 60 Hz, 15 Amps (computer)
230 VAC, single phase, 60 Hz, 40 Amps (dynamometer)
230 VAC, three phase, 60 Hz, 40 Amps (DE model)
Axle Weight: 6,000 lbs. maximum 12,000 lbs. maximum available
Shipping Weight: 5,000 lbs. (dynamometer weight only)
Upgradeable to AWD: Yes
MD-500 Downloads
MD-500 Photo Gallery
